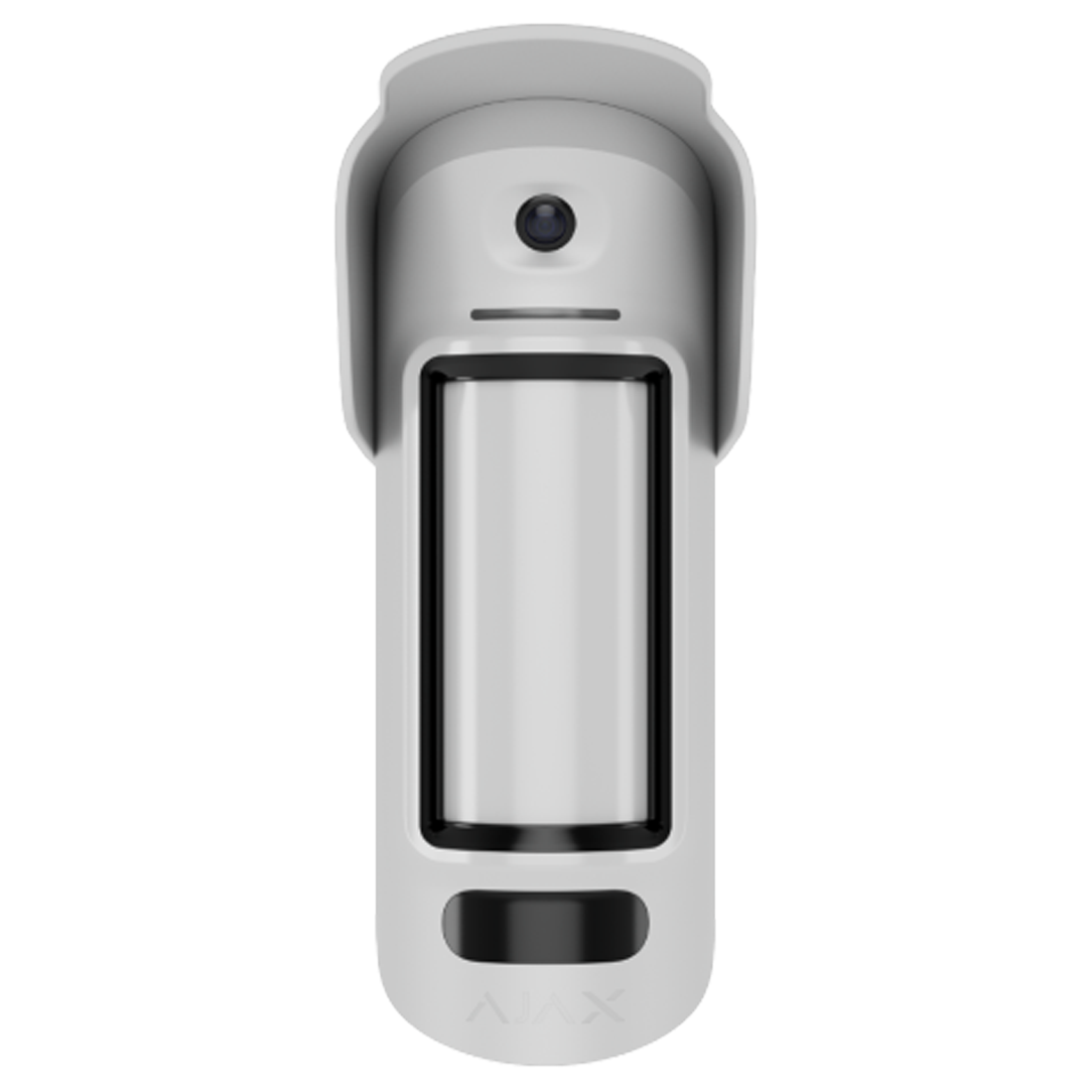

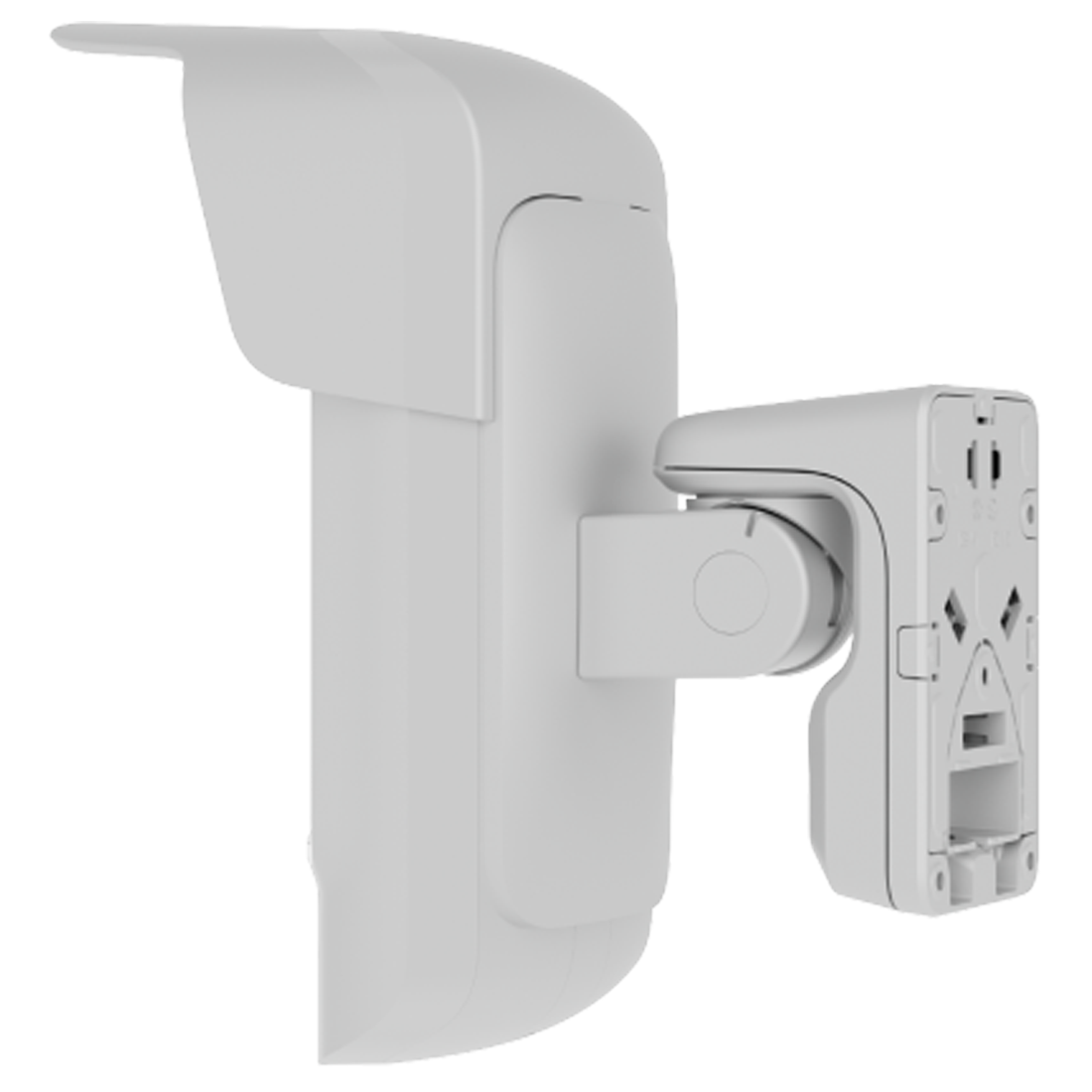

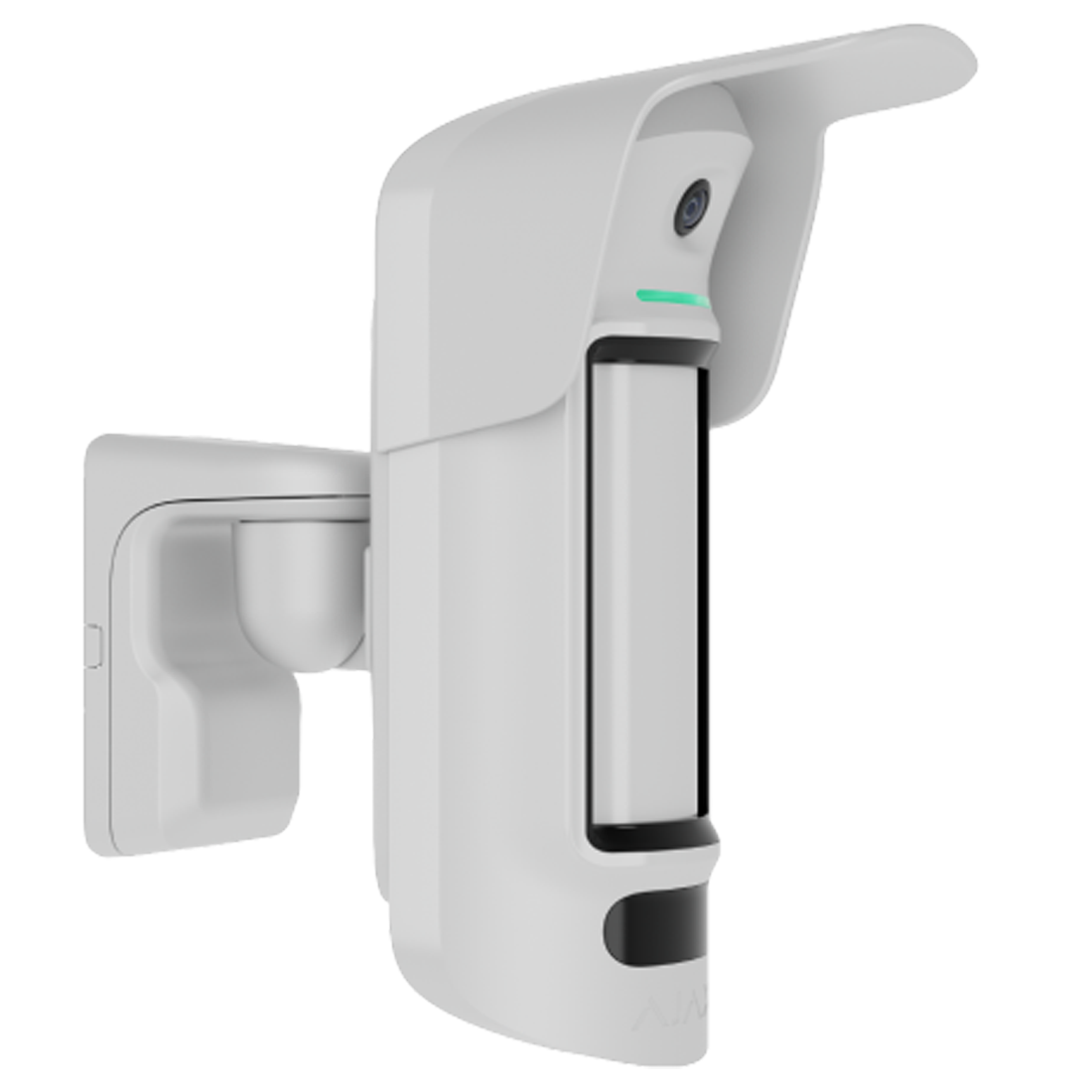

AJAX-99164/107888 MotionCam High Mount (PhOD) Outdoor Camera PIR – White

AJAX-99164/107888 MotionCam High Mount (PhOD) Outdoor Camera PIR – White

The AJAX MotionCam High Mount (PhOD) Outdoor Camera PIR is a cutting-edge outdoor security device combining PIR motion detection with instant photo-on-demand (PhOD) capabilities. Engineered for high mounting positions, this camera provides a wide field of view, capturing clear images immediately upon detecting movement. Its robust design withstands harsh weather conditions, making it ideal for securing outdoor areas around homes and businesses.

With advanced infrared technology and reliable wireless connectivity, the MotionCam High Mount delivers real-time visual verification, allowing users to confirm security events instantly. Compatible with the Ajax security system, it’s an essential addition for anyone seeking enhanced outdoor monitoring with minimal false alarms.

Features

• Electro-optical combined radio channel security detector
• Wireless
• Operates with Hub2 and Hub2+ only
• PIR sensor
• Alarm signal delivery time: 0.15 s
• Photo verification – Time to deliver a photograph with default settings: up to 9 sec
• Photo quality: up to 640 × 480
• Pictures in a series: 1-5 pcs
• Recommended installation height  2–4 m.
• Sensitivity adjustable: 3 levels
• Motion detection distance: Up to 15m
• Battery life: up to 3 years
• Jeweller radio technology
• Communication range with central unit up to 1,700 m in an open space
• Two-way communication between devices
• Operating frequencies: 868.0 – 868.6 MHz
• Self-adjusting RF output power: up to 20 mW
• Block encryption based on AES algorithm
• Device polling period: 12-300 s
• Operating temperature range from -25°С to +60°С
• IP55
• Permissible humidity up to 75%
• Anti sabotage
• Jamming detection
• Tamper resistant
• Remote setting and testing
• Weight: 470 g
• Certification: Grade 2, CE

*Battery: 4x CR123A lithium battery (included)*
